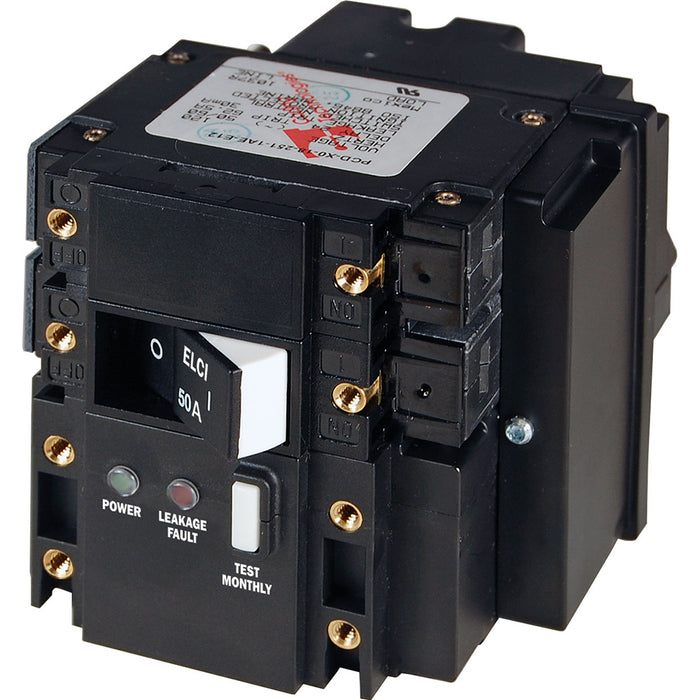

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

by Blue Sea Systems
Sold out
$326.33 - $326.33
$326.33
$326.33 - $326.33
$326.33
SKU 85023
We currently have 0 in stock . `

This item is currently out of stock. Orders placed will be backordered with our supplier and estimated ship date will be provided once available.

`

C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 50A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Max Voltage: 120VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA

Manufacturer : Blue Sea Systems
Manufacturer Part No : 3103
UPC : 632085031039
